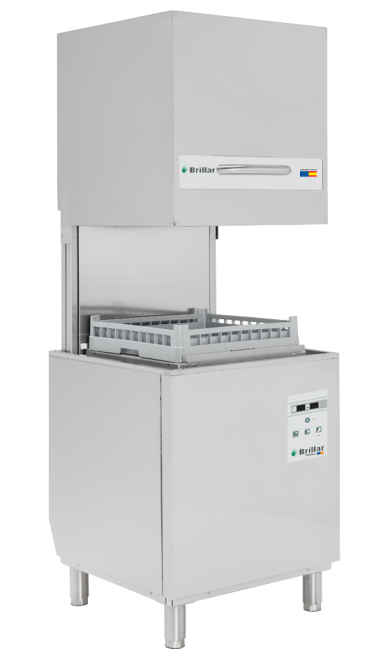

Brillar Pass Through Washer w/ Electronic Control Panel

Passthrough dishwasher with electronic control panel
  • Capacity: 40 baskets/hour
  • 2 washing cycles: 90/180 seconds
  • Continuous cycle up to the manual stop
  • Tank capacity: 45 litres/4.5 kW heating power
  • Boiler capacity: 7 litres/6 kW heating power
  • Wash pump power: 600W - Rinse water consumption: 3 litres/rinse
  • Bult in rinse-aid dispenser, detergent dispenser and drain pump
  • Anti-backflow valve fitted - Safety thermostat
  • Temperatures adjusted: wash 60°C/rinse 90°C
  • Supplied with 2 baskets (500mmx500mm) and 2 cutlery baskets
  • 415V 25A 50Hz
  • More Information
    Anti-backflow Valve Yes
    Washing Cycles 2
    Washing Capacity (basket/hour) 40
    Wash Pump Power (W) 600
    Tank Capacity (litres/tank) 45
    Rinse Temperature 90
    Rinse Consumption (litres/rinse) 3
    Rinse Aid Dispense Yes
    Power 415V 3 Phase + Earth + Neutral 10A 50Hz
    Drain Pump Yes
    Basket Size (mm) 500x500
    Detergent Dispenser Yes
    Cycle Lengths (secs) 90/180
    Cutlery Baskets Included 2
    Control Panel Digital Electronic Panel
    Boiler Capacity 7
    Baskets Included 2
    Wash Temperature 60
    Product Width 675
    Product Depth 675
    Product Height 1440/1961
    Manufacturer Brillar
    Recommended Retail Price (RRP) A$7,990.00
